Pharmacy Clamp Stainless Steel 304/316L Pressure Relief Valve Clamp Manual Safety Valve

Availability:
Quantity:
  • KG-V1191/KG-V1204

  • KINGGO

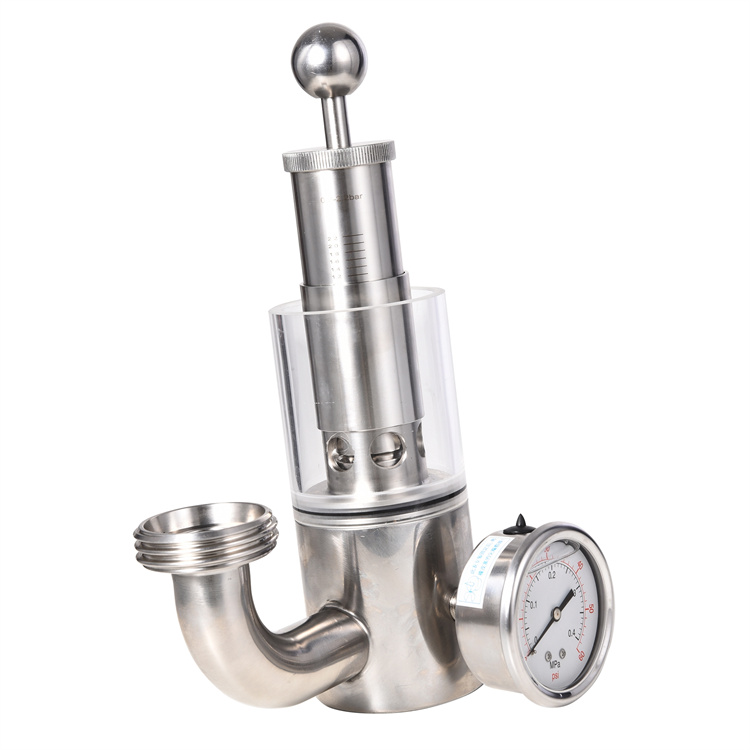

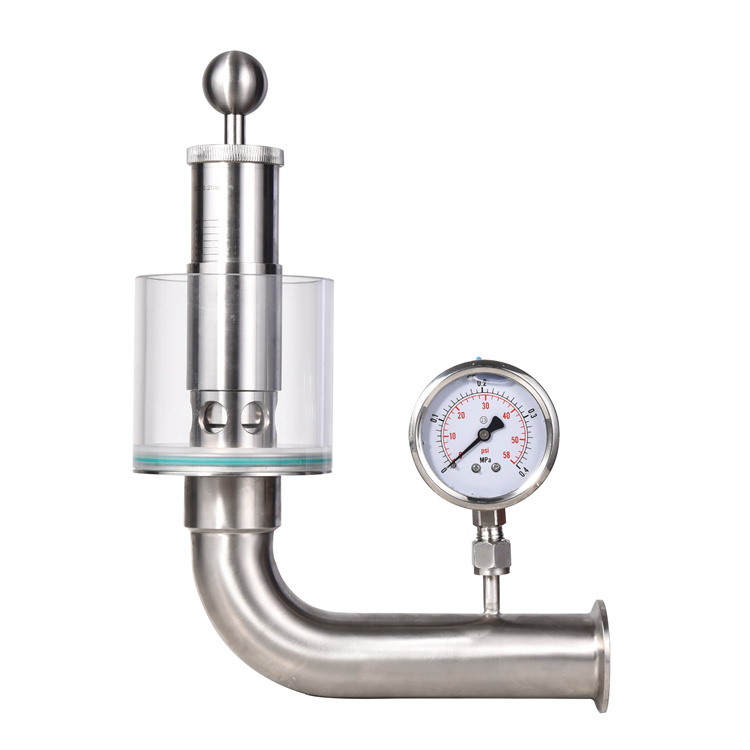

Stainless Steel Sanitary Clamp Safety Valve with Pressure Guage

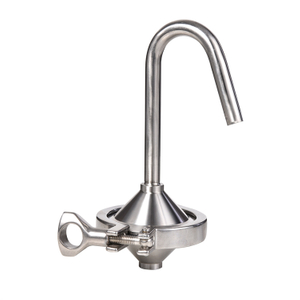

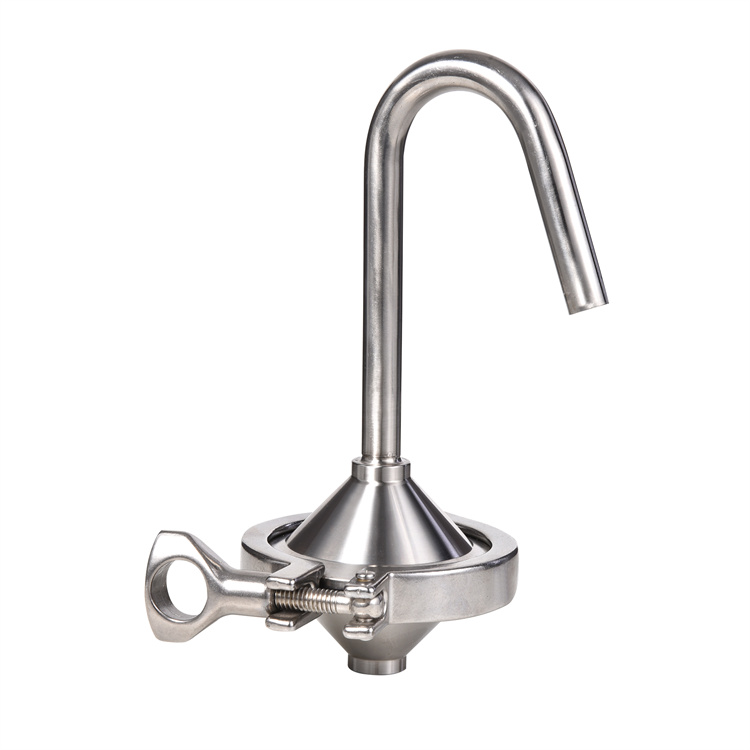

The exhaust valve outside the cover with a transparent glass cover, glass can be added within water, the liquid level can diffuse through the exhaust port, when the pressure relief, can be found in time bubbles. Valve is normally closed, with pressure scale adjustment function, according to the needs of different conditions to adjust the pressure within the set range.

Features
The safety relief (release) valve body which contacts with liquid is made of SS316L from solid bar.
The non-contacting part of the safety relief (release) valve is made of SS304 casting materials.
Max. Pressure: 0.2~2.2bar
Max. Temperature: -10  ~ +90 degree
End Connection:Weld, Clamp
Size:1"~1-1/2"  / DN25~DN40
Compact and beautiful appearance , the valves can be installed with limit space
Manually adjustable to keep the system safety.
Self-draining and crevice free
Lock can be available for settling the relief pressure
With internal finishing Ra16<0.4micron
