Home » Products » Sanitary valves » Sanitary Pressure Relief Valves » 304/316L Stainless Steel Safety Valve Float Type Pressure Relief Valve

loading

loading

304/316L Stainless Steel Safety Valve Float Type Pressure Relief Valve

Availability:
Quantity:
Inquire Add to Basket

  • KG-V1189/KG-V1190

  • KINGGO

Stainless Steel Sanitary FloathType Pressure Relief Safety Valve

The automatic exhaust valve adopts a double seat valve, fitted with a free plastic ball.
Plastic ball is lighter than water, according to the condition of pressure to close the valve seat.
This valve is mounted vertically in a pipeline or container top or installed in the pump inlet, on-demand air removal.

Features
The safety relief (release) valve body which contacts with liquid is made of SS316L from solid bar.
The non-contacting part of the safety relief (release) valve is made of SS304 casting materials.
Max. Pressure: 10bar
Max. Temperature: -10  ~ +120 degree
End Connection:Weld, Clamp
Size:3/4"~1-1/2"  / DN20~DN40
Compact and beautiful appearance , the valves can be installed with limit space
Manually adjustable to keep the system safety.
Self-draining and crevice free
Lock can be available for settling the relief pressure
With internal finishing Ra16<0.4micron
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Product Description

Product Description



Product Name 304/316L Stainless Steel Safety Valve Float Type Pressure Relief Valve
Size                     3/4"~1-1/2"  / DN20~DN40
Max.Temperature -10 ℃   to  +120 ℃
Connection         Clamped, Welded ,Threaded
Pressure 0 to 10Bar
Standard             3A,DIN,SMS,ISO/IDF,RJT
Gasket                NBR,EPDM,PTFE,SILICONE
Packing Method Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers
Shipment By express,by air or by sea,as customer request
Delivery Detail Usually 10-15days after order confirmed
Product Display

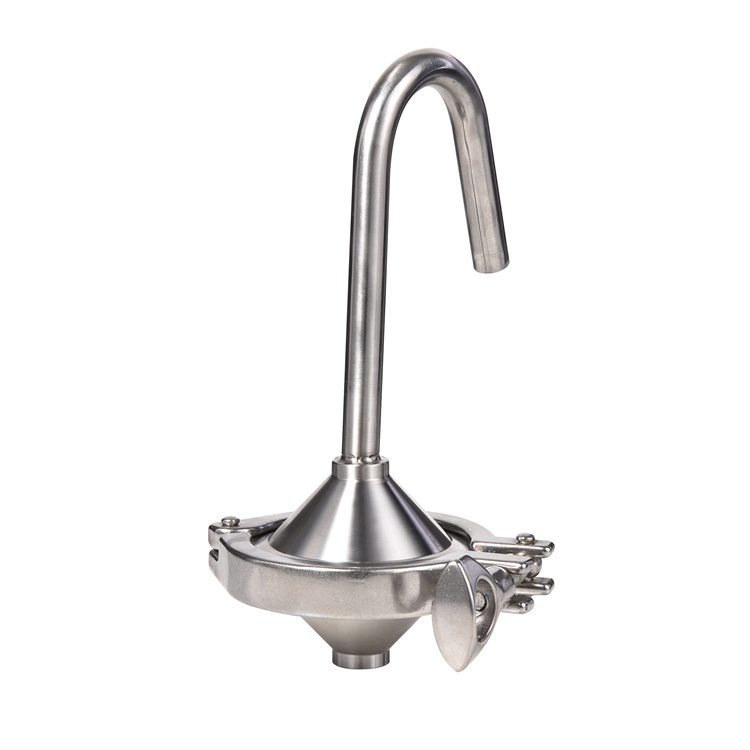

 6. 浮球式排气阀 (2)

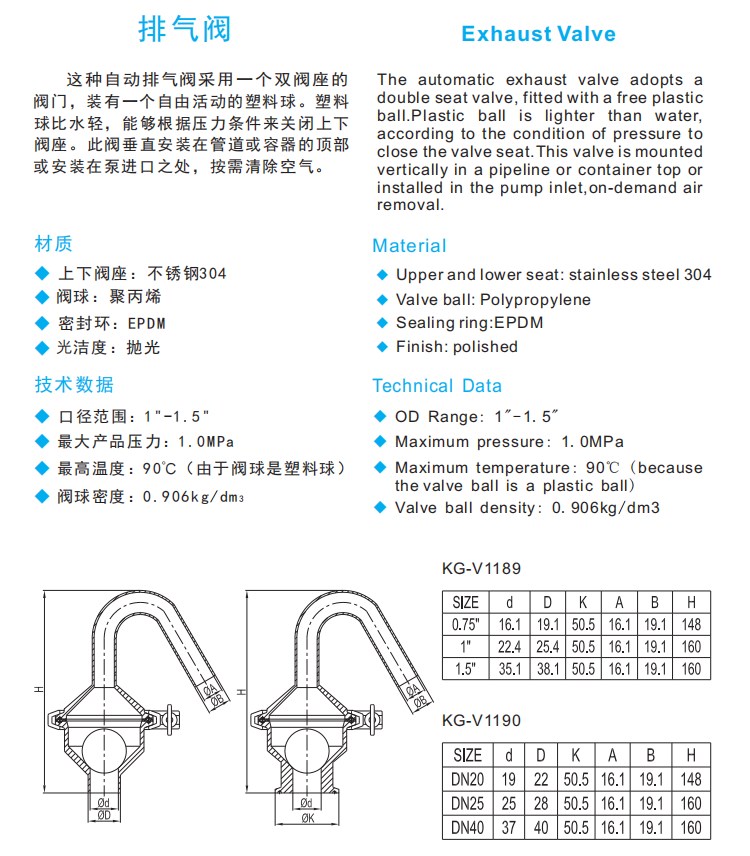

浮球款

Similar Product






More Product







About Company




Packaging & Shipping

 _750x6340_06_01_04

FAQ

FAQ



 1,How about the surface finishing ?
KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be
confirmed by customer&rsquo;s requirement.

2,If free sample available before place order ?
Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.

3,Is there any MOQ provide ?
Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.

4,Our business payment terms ?
We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.

5,Our standard export packing ?
For small order: plastic package each pc to carton and then into weaving bag.
Large order: plactic package into cartons,then cartons into plywood case.

6,Shipment way choose ?
Small orders will be choose by express,by airline.
Large orders will be choose by sea.
It will according to customer&rsquo;s request.
