Food Processing SS304/316L Adjustable Sanitary Safety Valve Manual Release Valve

Availability:
Quantity:

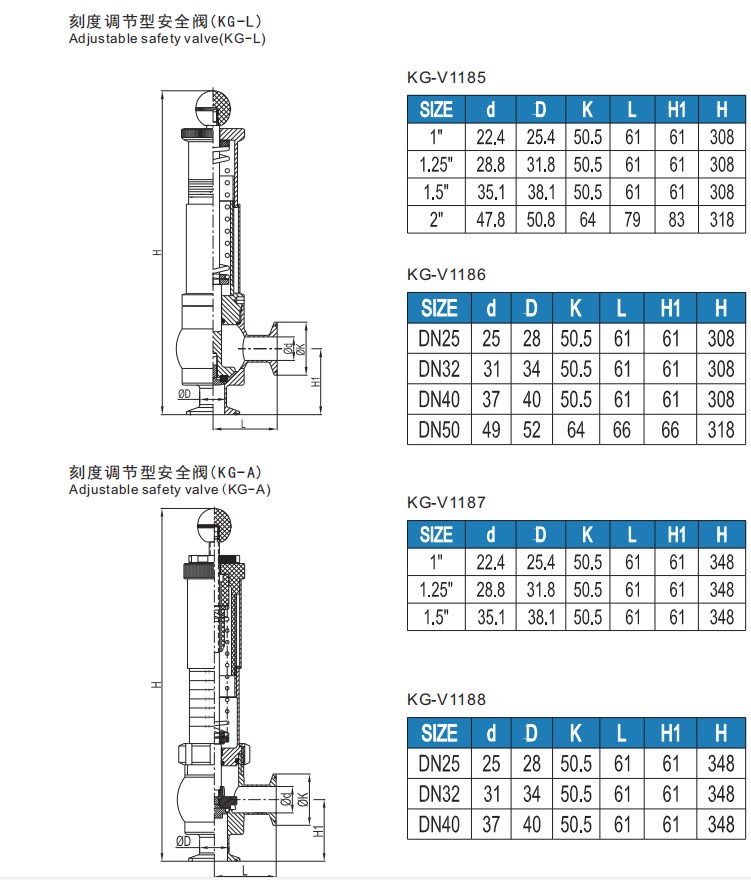

  • KG-V1179~KG-V1188

  • KINGGO

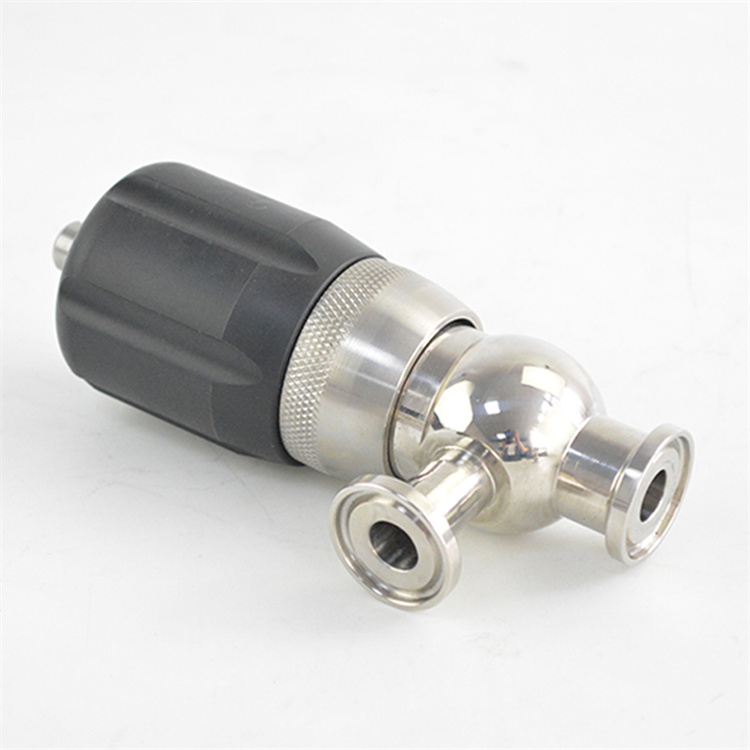

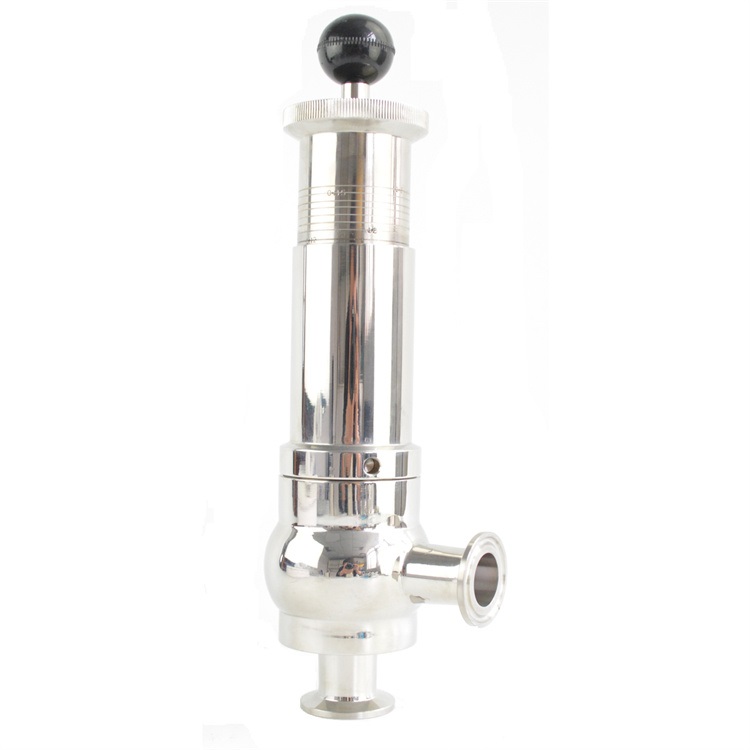

Stainless Steel Sanitary Adjuastable Clamp Safety Valve
Adjustable Clamp Safety Valve applied for Multi-Structure Safety Valve and pressure regulator valve are widely used in Food、Beverage、Dairy and Beer Industry.

Features
The safety relief (release) valve body which contacts with liquid is made of SS316L from solid bar.
The non-contacting part of the safety relief (release) valve is made of SS304 casting materials.
Max. Pressure: 0.5~6bar
Max. Temperature: -10  ~ +120 degree
End Connection:Weld, Clamp
Size:1"~4"  / DN25~DN100
Compact and beautiful appearance , the valves can be installed with limit space
Manually adjustable to keep the system safety.
Self-draining and crevice free
Lock can be available for settling the relief pressure
With internal finishing Ra<0.8um
