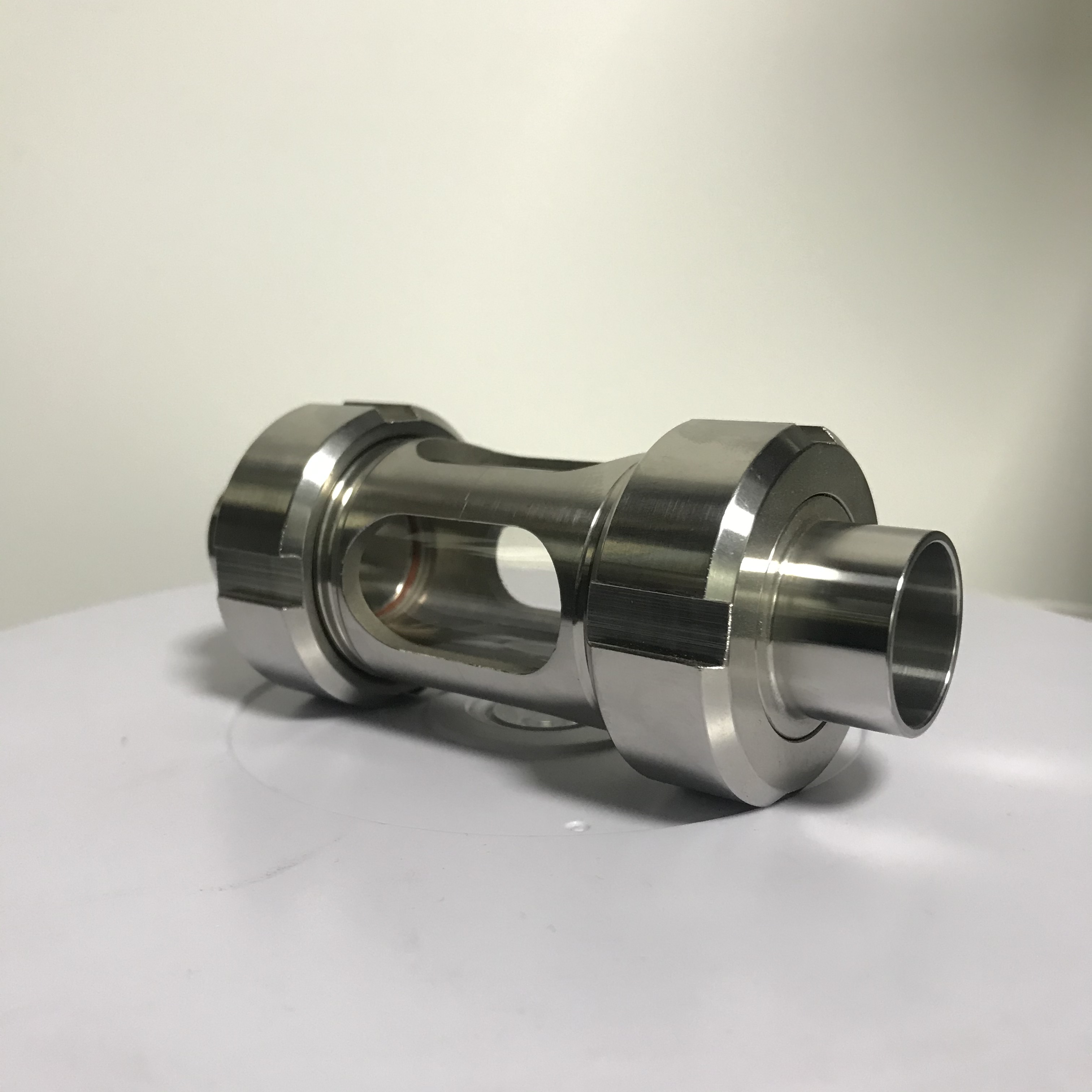

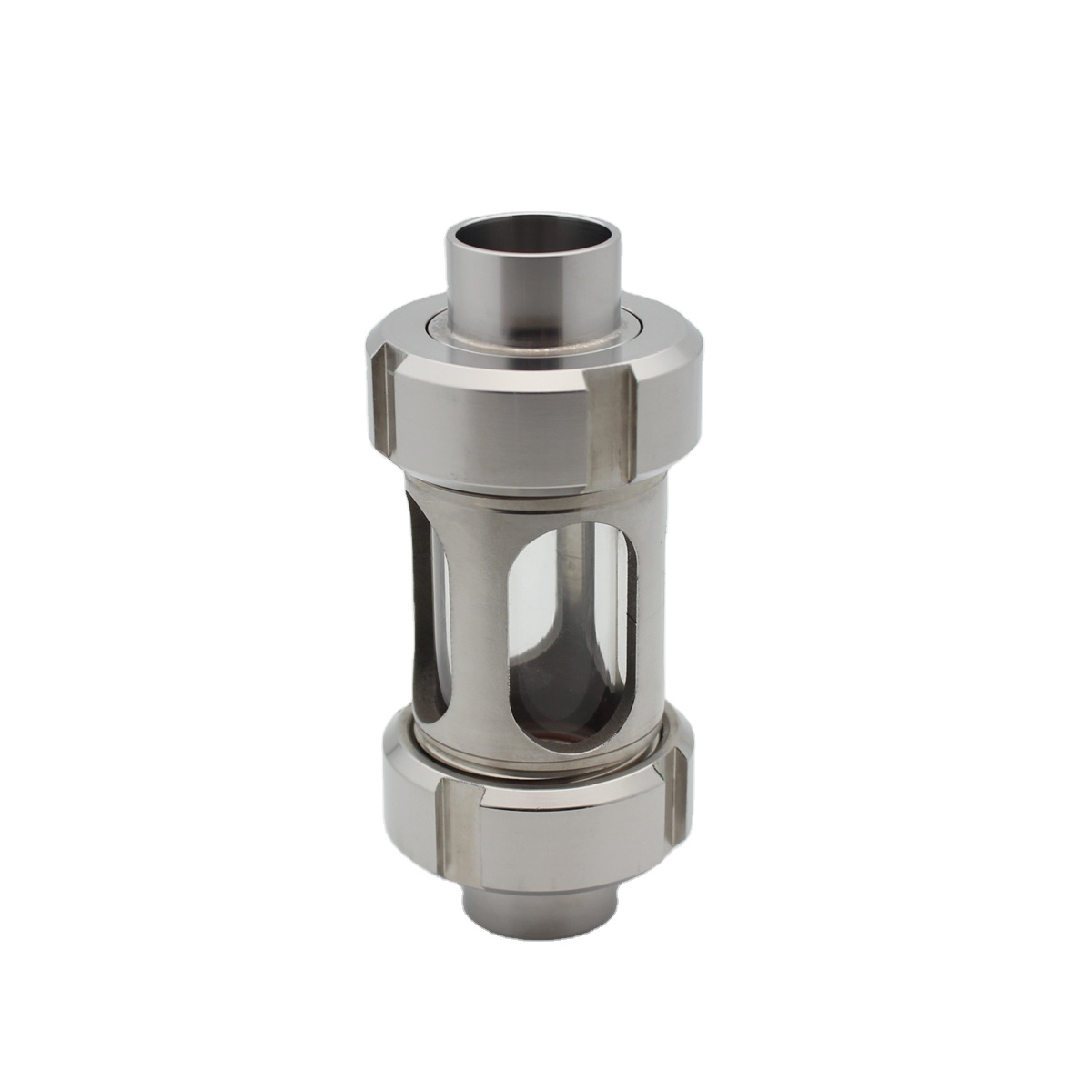

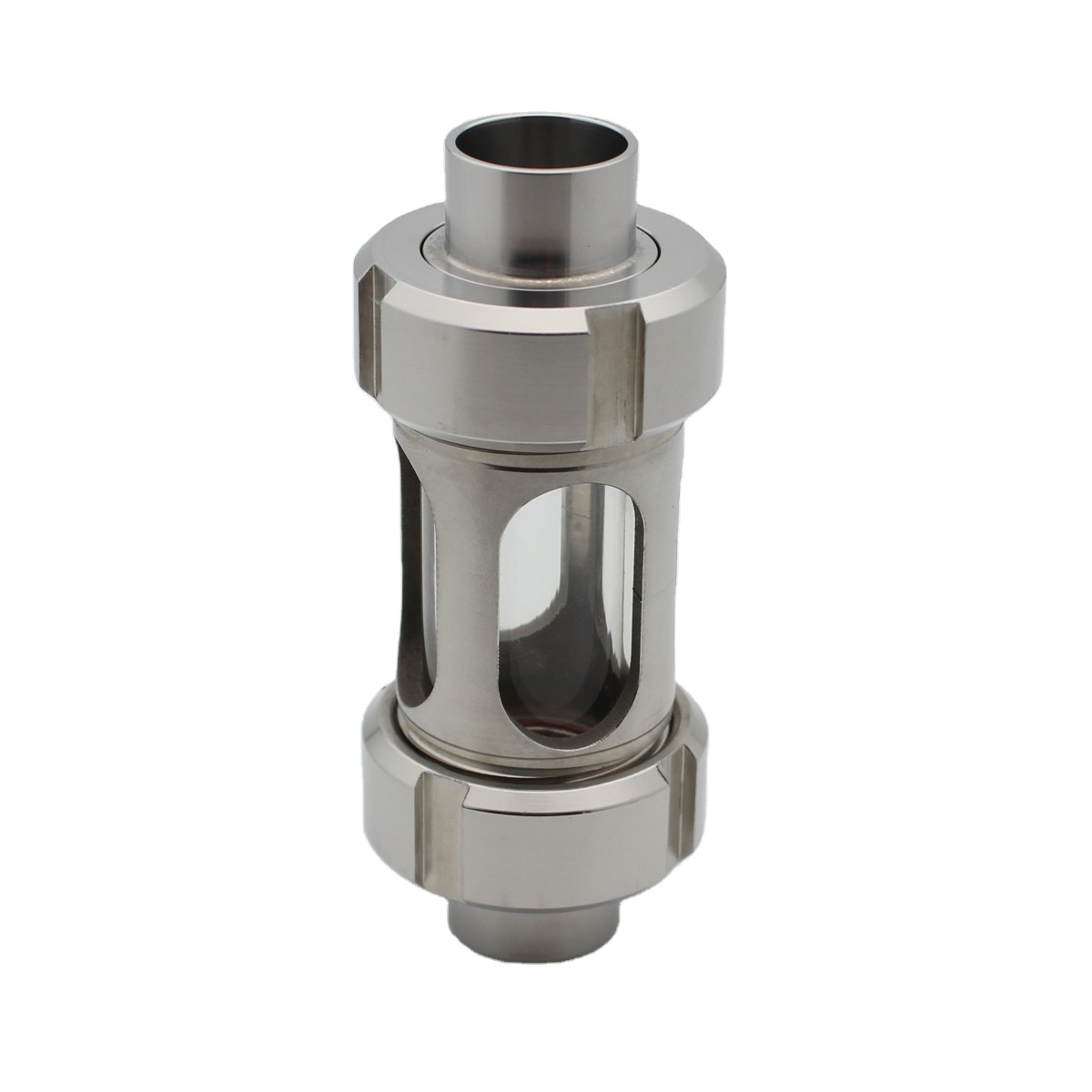

Sanitary Stainless Steel SS304 SS316L Mini Union Type Inner Sight Glass

Availability:
Quantity:
Inquire Add to Basket

  • KG-G4011

  • KINGGO

Sanitary stainless steel viewing mirror refers to the device used to observe the internal materials of containers and equipment. It is a safety accessory and should be checked regularly. According to the shape, it is divided into round and tube mirrors. According to the use of peeping and lighting vision mirror.
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Product Description

Product Description



Name:

Stainless Steel Flange Sight Glass
Material:

AISI304(1.4301) / 316L(1.4404)
Size:              DN25-DN200 / 1"-8"
Standard:       3A,DIN,SMS,ISO,IDF

Glass Material:

Tempered glass/ Toughened high-borosilicate glass

Seal Material:

EPDM,Silicone,PTFE

Connection:

Clamped,welded,threaded end

Optional:

With light / Without Light
Max Pressure: 10Bar

Temperature:

-10°C to +120°C
Shipment: By express,by air or by sea,as customer request
Delivery Detail: Usually 10-15days after order confirmed
Applications:  Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry,etc
Product Display

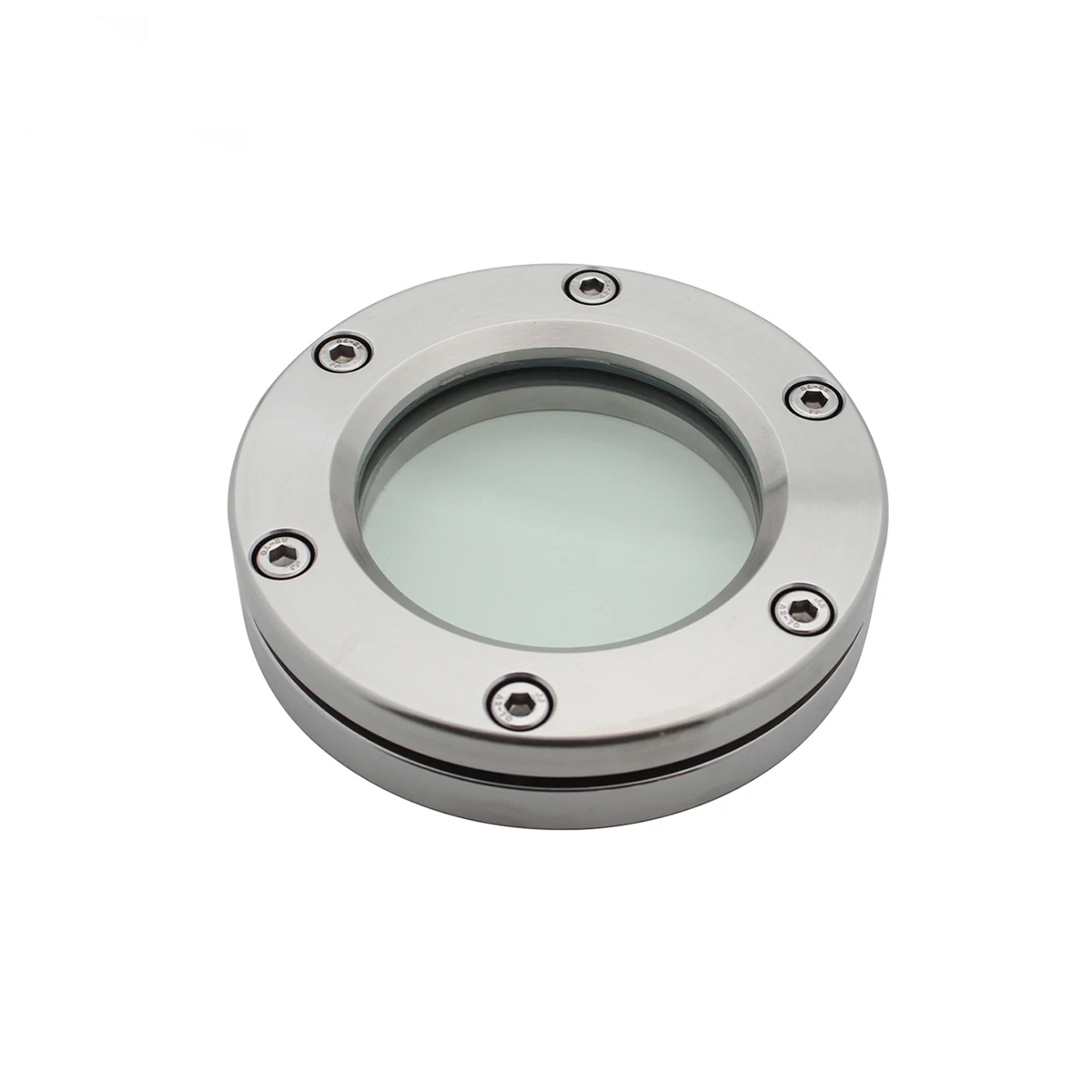

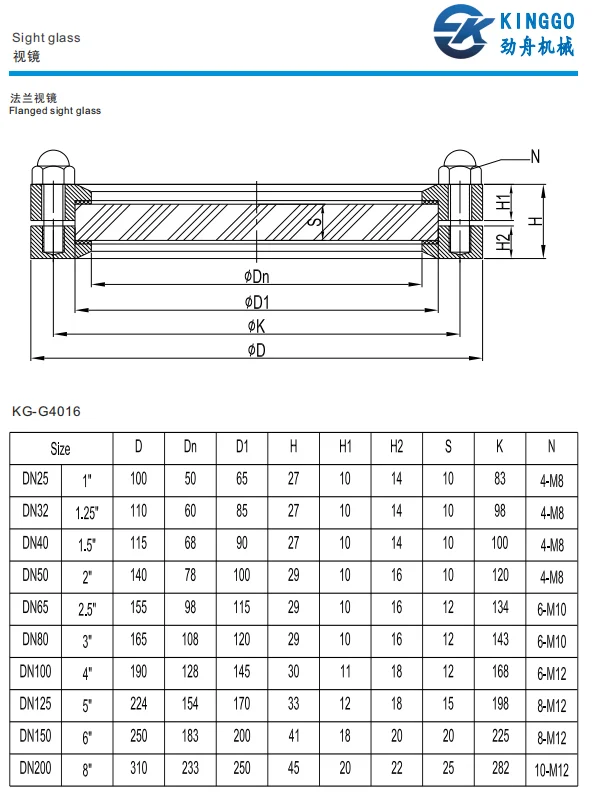

         58955.jpg        QQ20210906153318.png
