| Quantity: | |

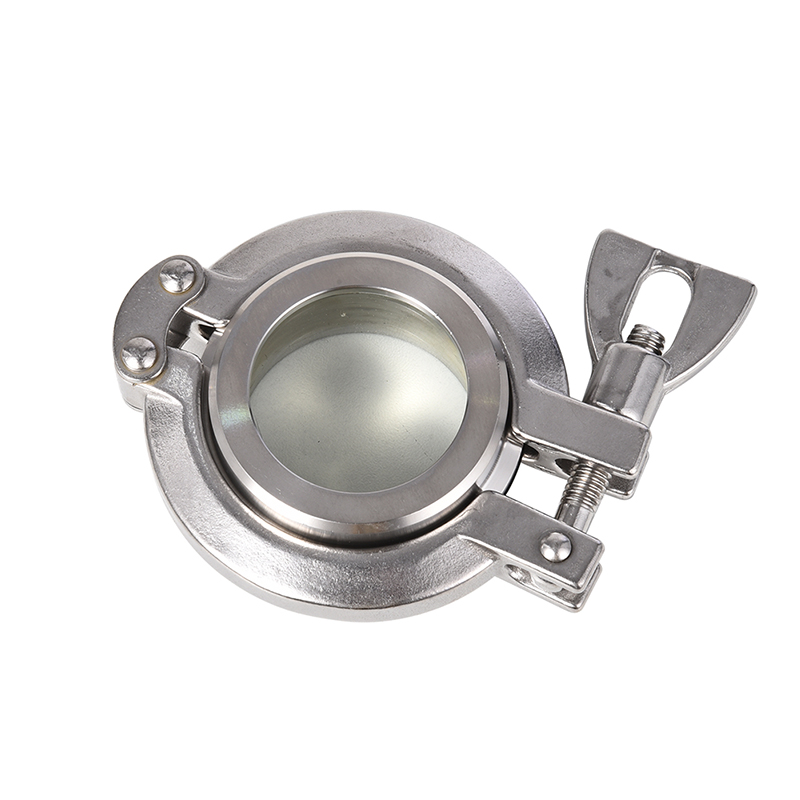

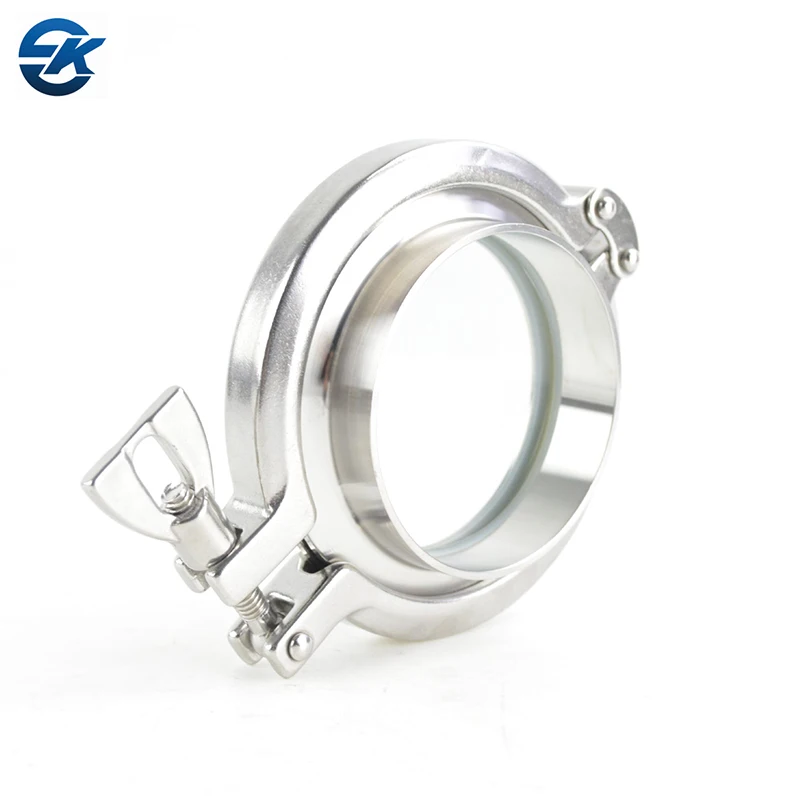

| Name: | Stainless Steel Tri Clamp Union Type Sight Glass |
| Material: | AISI304(1.4301) / 316L(1.4404) |
| Size: | DN40-DN200 / 1.5"-8" |
| Standard: | 3A,DIN,SMS,ISO,IDF |
Glass Material: | Tempered glass/ Toughened high-borosilicate glass |
Seal Material: | EPDM,Silicone,PTFE |
Connection: | Clamped,welded,threaded end |
| Max Pressure: | 10Bar |
Temperature: | -10°C to +120°C |
| Shipment: | By express,by air or by sea,as customer request |
| Delivery Detail: | Usually 10-15days after order confirmed |
| Applications: | Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry,etc |
1,How about the surface finishing ?
KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be
confirmed by customer’s requirement.
2,If free sample available before place order ?
Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.
3,Is there any MOQ provide ?
Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.
4,Our business payment terms ?
We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.
5,Our standard export packing ?
For small order: plastic package each pc to carton and then into weaving bag.
Large order: plactic package into cartons,then cartons into plywood case.
6,Shipment way choose ?
Small orders will be choose by express,by airline.
Large orders will be choose by sea.
It will according to customer’s request.
