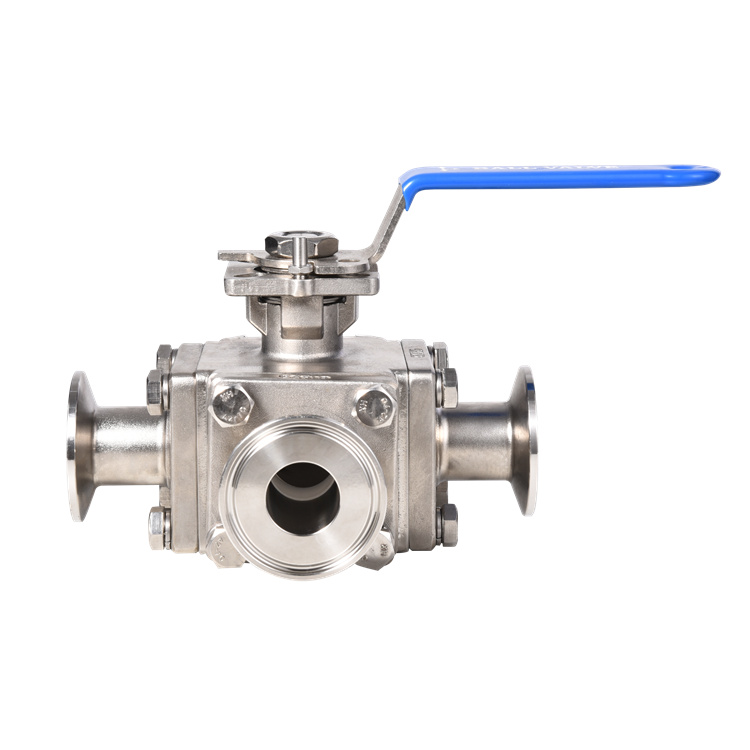

Product Name: | Stainless Steel 304 High Plate Clamp 3-way Ball Valve |
Ball Valve Type: | Direct way ball valve,butterfly type ball valve,3pc ball valve |
Size: | 3/4''-4'';DN15-DN100 |
Connection End: | Welding,Clamped,Threaded,Flange |
Standard: | 3A,DIN,SMS,ISO/IDF,RJT |
Gasket: | Silicone,EPDM,FPM,PTFE |
Operation Way: | Manual,Pneumatic and Electric actuator |
Control Head: | C-TOP controller,sensor |
Max Temperature: | 10bar |
Working Temperature: | -10°C to +120°C |
Surface Polishing: | Ra≤0.8um |
Packing Method: | Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
Shipment Way: | By express,by air or by sea,as customer request |
Delivery Detail: | Usually 10-15days after order confirmed |
Application Scope: | Dairy, food, beer, beverage, pharmacy, cosmetic, water etc |
1,How about the surface finishing ?
KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be
confirmed by customer’s requirement.
2,If free sample available before place order ?
Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.
3,Is there any MOQ provide ?
Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.
4,Our business payment terms ?
We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.
5,Our standard export packing ?
For small order: plastic package each pc to carton and then into weaving bag.
Large order: plactic package into cartons,then cartons into plywood case.
6,Shipment way choose ?
Small orders will be choose by express,by airline.
Large orders will be choose by sea.
It will according to customer’s request.
