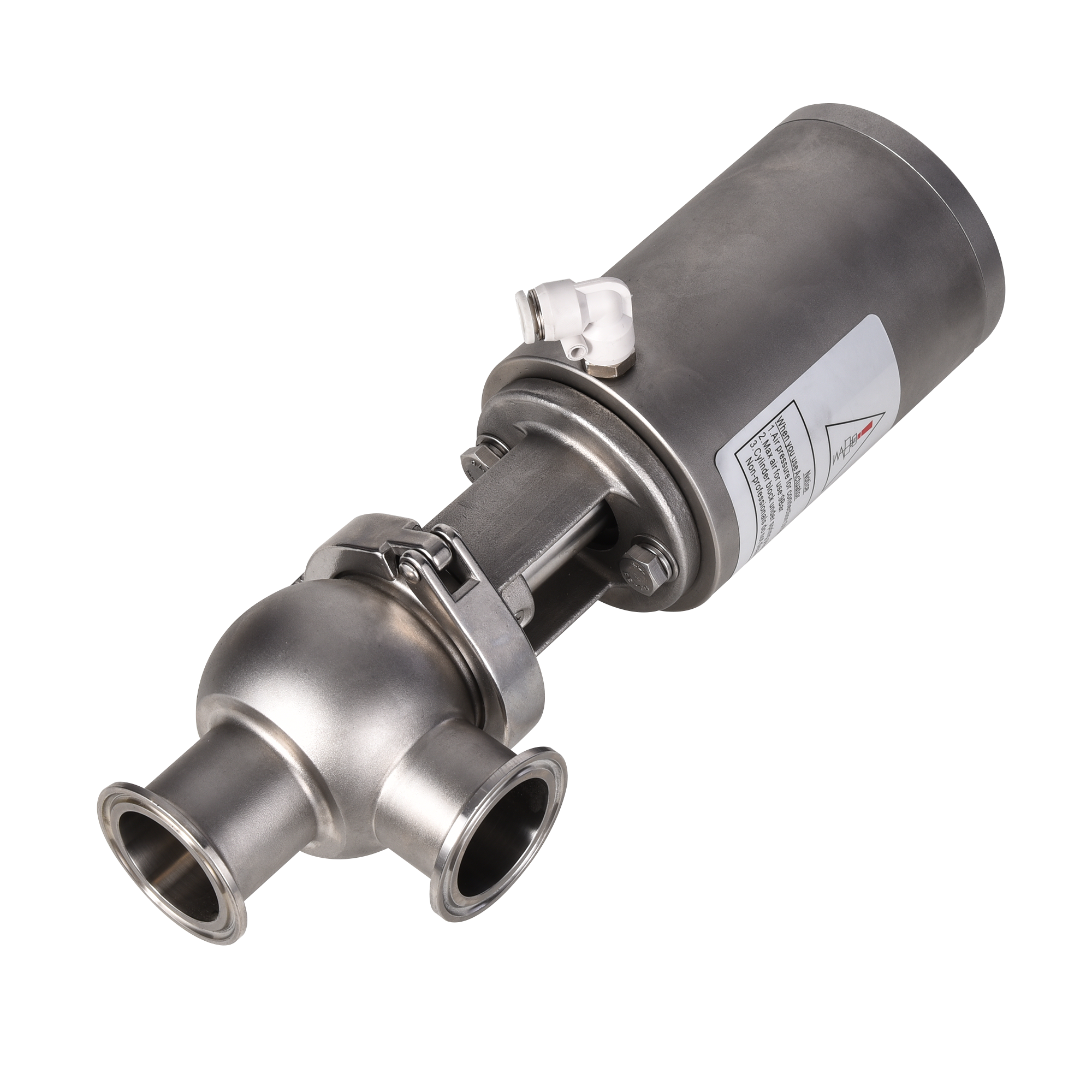

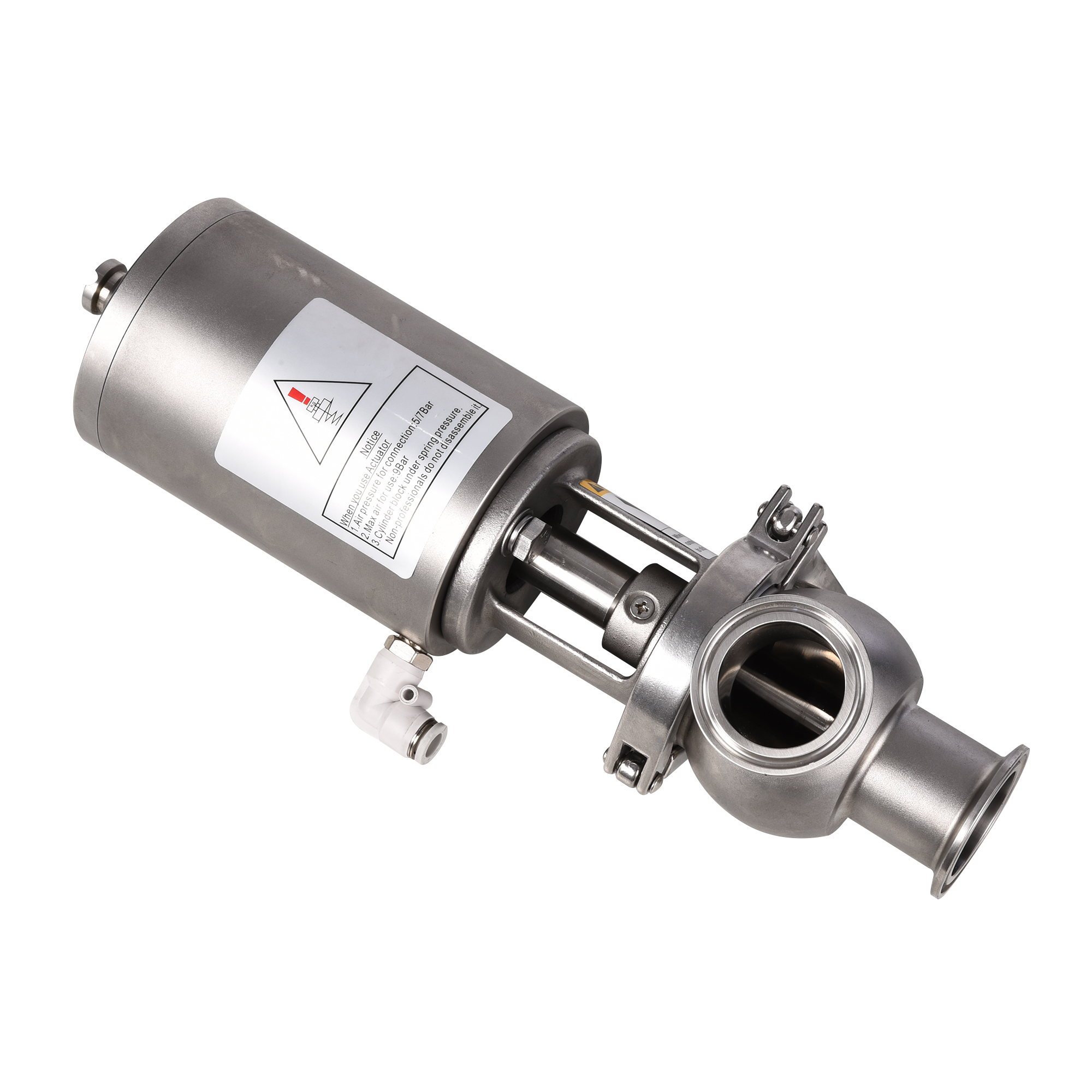

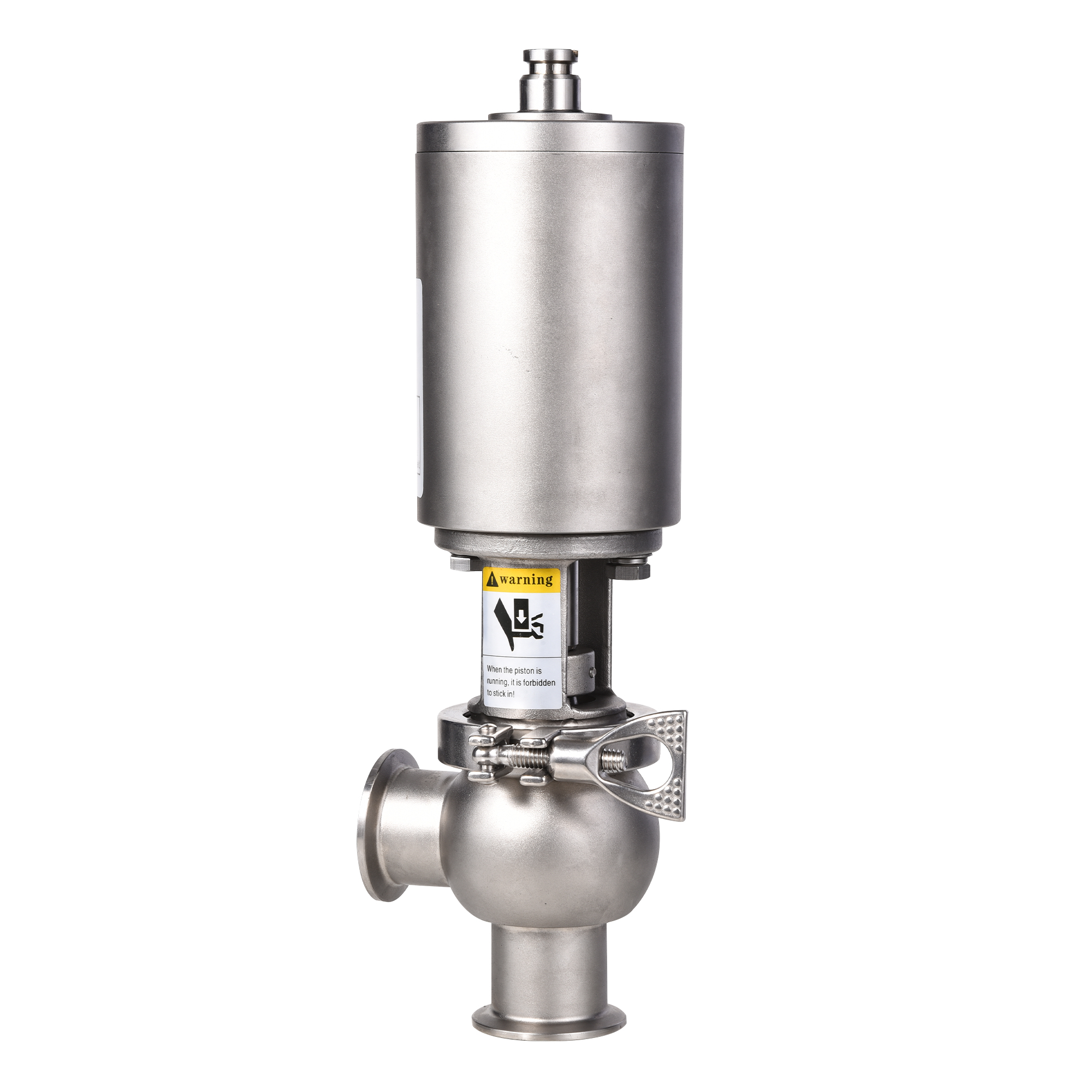

Sanitary Stainless Steel Mixproof Valve Pneumatic Actuator Stop Reversing Valve

Availability:
Quantity:

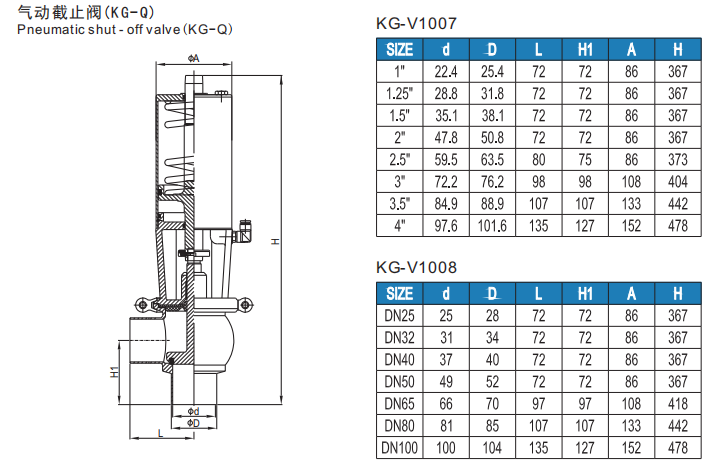

  • KG-V1007

  • KINGGO

Sanitary stop valve is a single seat manual/pneumatic control valve, widely used in food, beverage, pharmaceutical, beer, brewing, dairy products and other industries.



Body material :(contact with medium) 304/316l other accessories 304

Sealing ring material:

Standard: ethylene propylene diene rubber (EPDM)

Optional: Silicon rubber, fluorine rubber (FPM)

The regulating handle

Manual flow control valve: hand wheel

Manual stop valve: rocker handle

The connection method

Welding type, thread type, clamp type,

The way of connecting with pipeline or equipment is made according to the international standard size of DN11850, IDF/ISO, SMS, to ensure the connection and exchange with imported equipment
