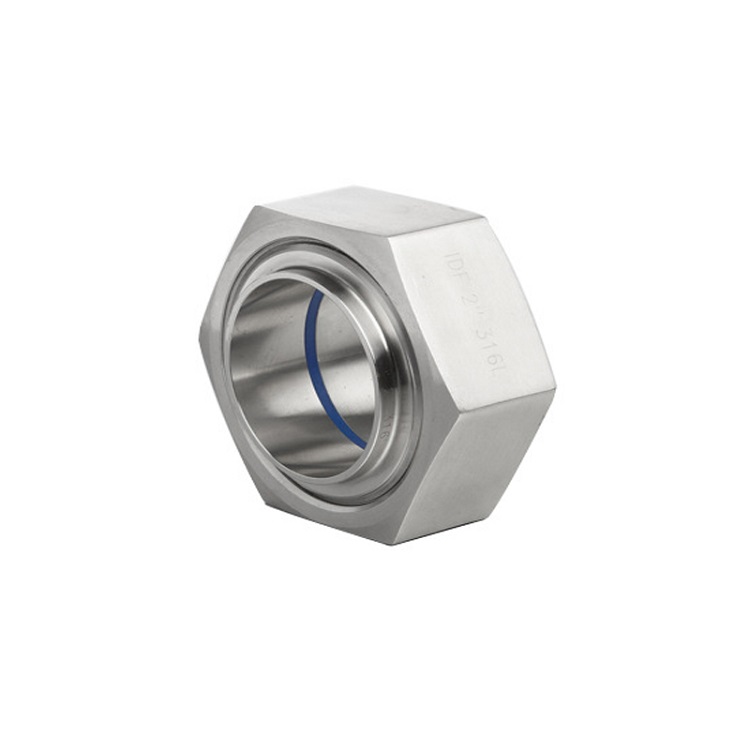

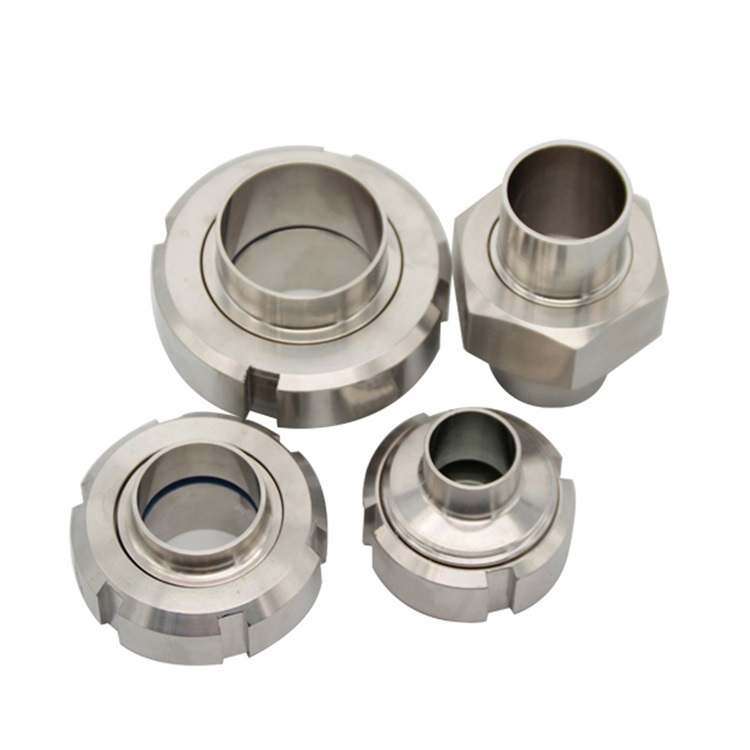

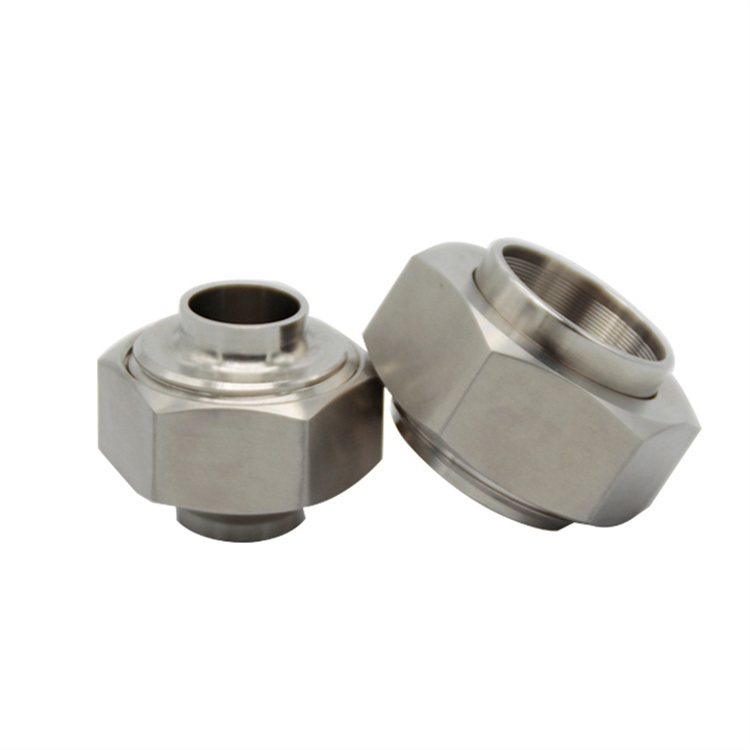

SMS Stainless Steel 304/316L Food Processing DIN11850 Six Slot Union

Availability:
Quantity:
Inquire Add to Basket

  • KG-U7022~KG-U7034

  • KINGGO

It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
Parts of complete unions:Liner, nut, male and gasket.
Advantage:
(1)It is suitable for flexible and easy maintenance.
(2)It is especially suited for processes where the load on seals is extra high, where easy control and replacement of seals is necessary and where optimal cleaning is required.In order to sustain high quality, it is importance that the products are uniform.Therefore tolerance and thickness are carefully controlled.

Product Name: SMS Stainless Steel 304/316L Food Processing DIN11850 Six Slot Union
Material: Stainless Steel 304 / 316L
Size: 1" ~ 4"
Function:Mainly used to sanitary pipe system
Warranty: 1 Year Warranty
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Product Description

2

Product Name:

 SMS Stainless Steel 304/316L Food Processing DIN11850 Six Slot Union

Material:

1.4404/1.4301, SS304/SS316L

Availability size:

1"-4"

Work Pressure:

0-10 Bar

Connection Type:

 Male part,Welding Liner,Nut,Seal

Type option:

Union

Function

Mainly used to Pipe System

Application scope:

Widely used in field of food-processing,beverage,beer,pharmaceutical  industries.

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 5-7days after receiving T/T down payment.




TIM图片20190720172750

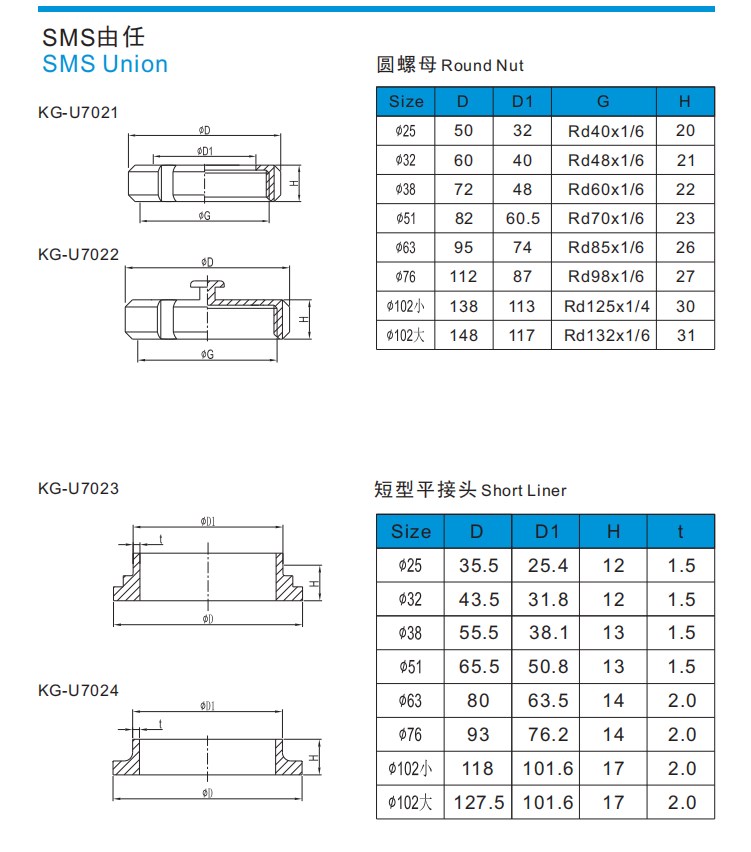

SMS


_750x6340_06_01_04

FAQ



 1,How about the surface finishing ?
KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be
confirmed by customer’s requirement.

2,If free sample available before place order ?
Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.

3,Is there any MOQ provide ?
Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.

4,Our business payment terms ?
We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.

5,Our standard export packing ?
For small order: plastic package each pc to carton and then into weaving bag.
Large order: plactic package into cartons,then cartons into plywood case.

6,Shipment way choose ?
Small orders will be choose by express,by airline.
Large orders will be choose by sea.
It will according to customer’s request.
