| Quantity: | |

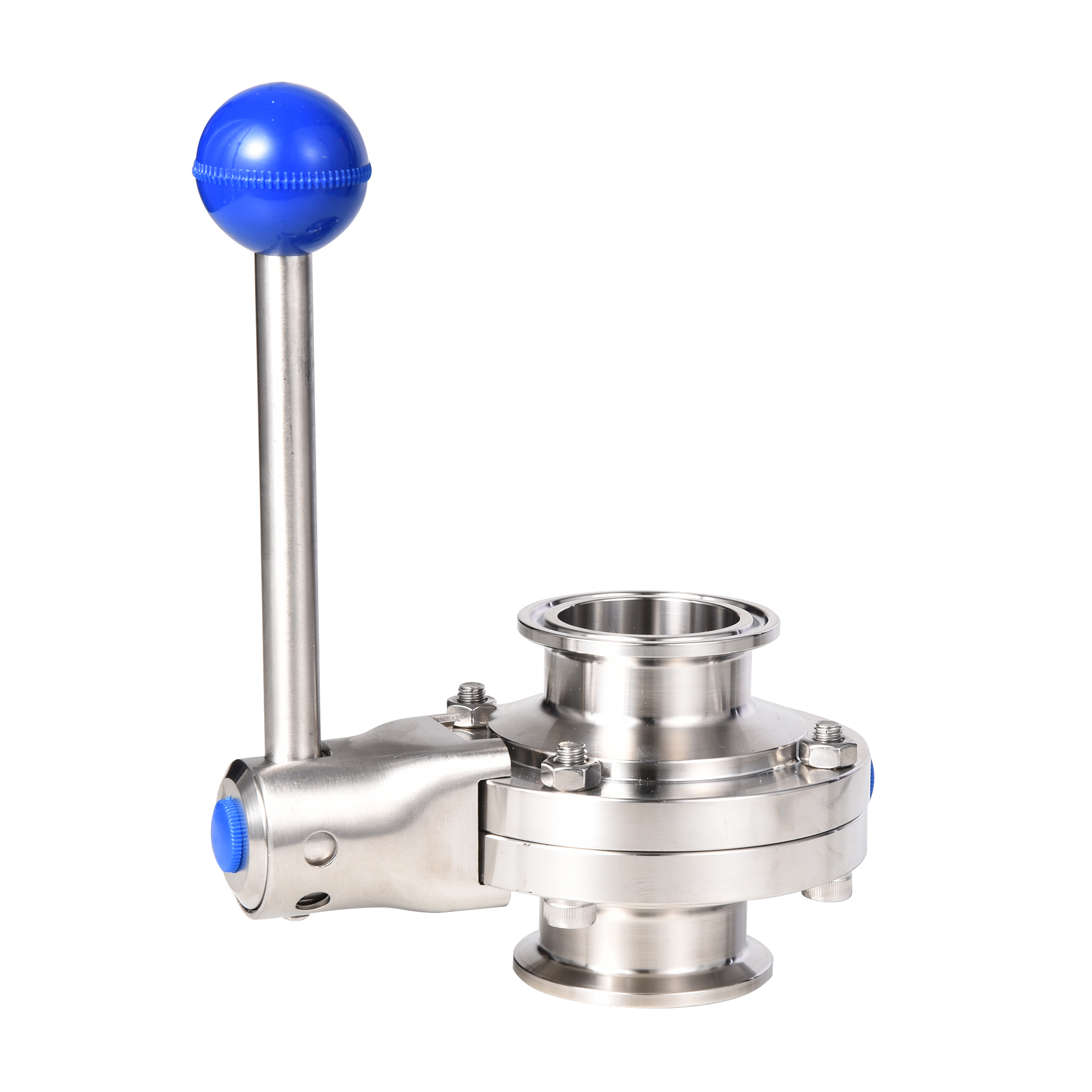

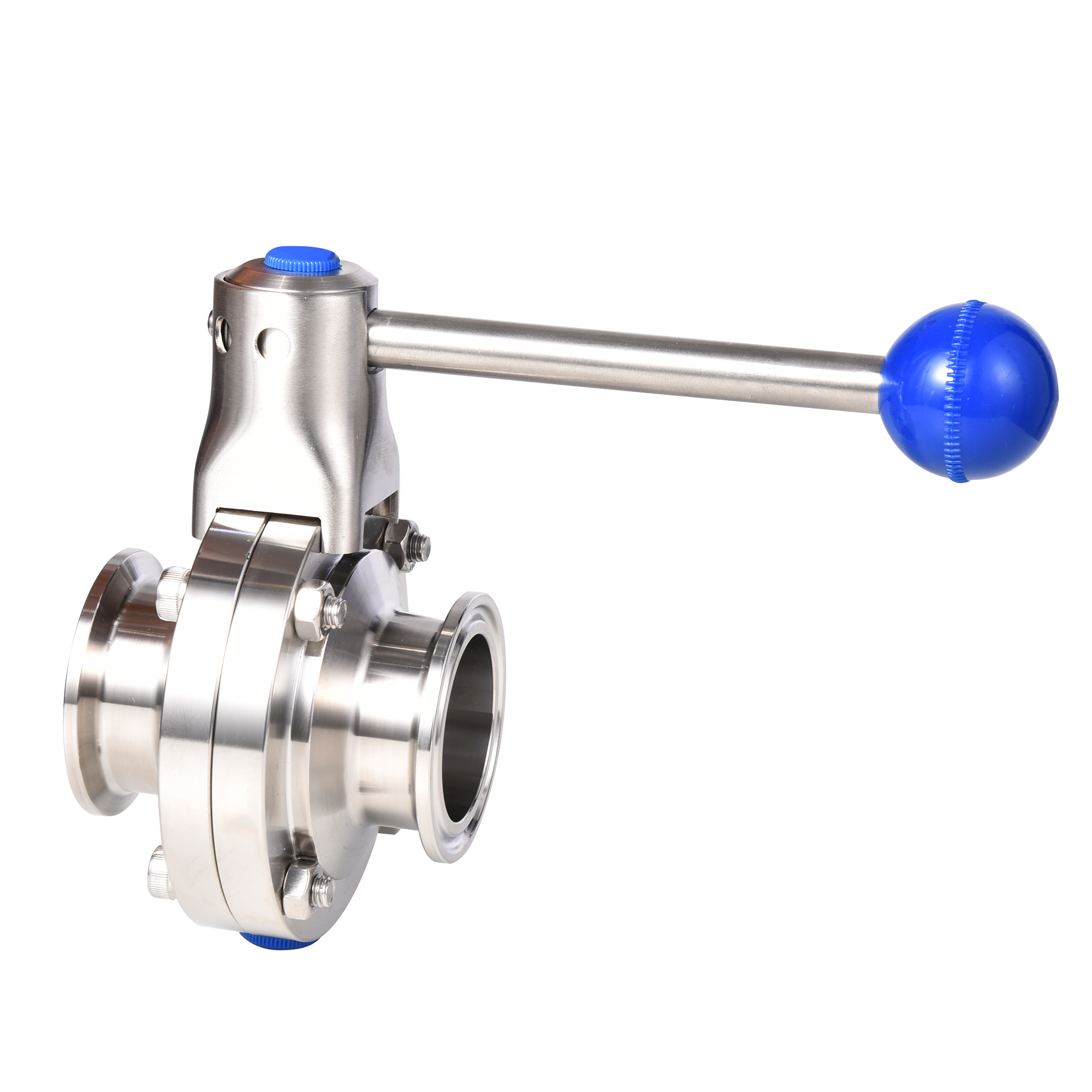

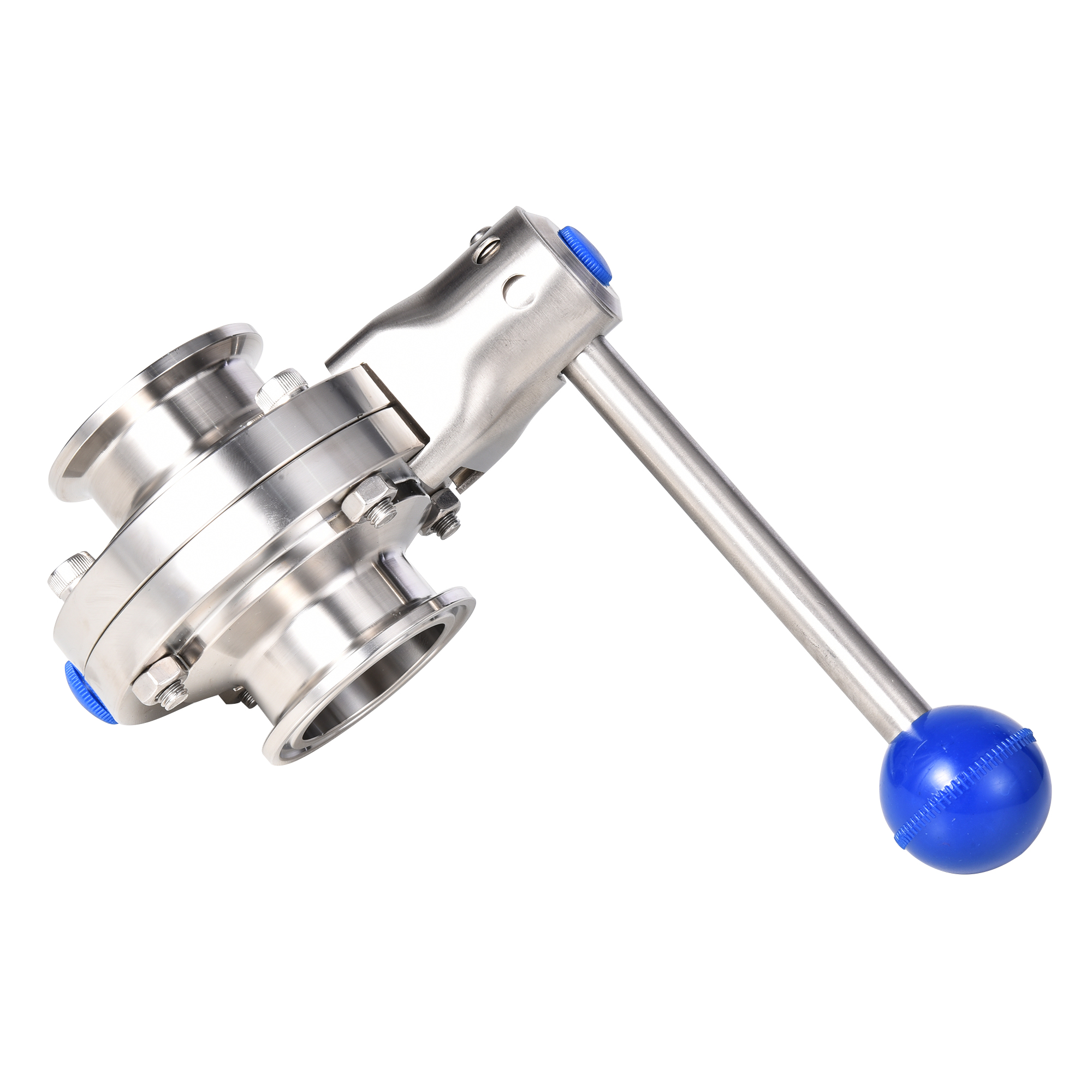

Product Name: | Food Grade Stainless Steel Sanitary Manual Tri Clamp Butterfly Valve with Pull Handle |
Size: | 1/2"-10"/DN10-DN250 |
Connection End: | Weld,Tri-clamp,Thread,Flange |
Standard: | 3A,DIN,SMS,ISO/IDF,RJT |
Gasket: | Silicone,EPDM,Viton |
Operation Way: | Manual,Pneumatic,Electric,Pneumatic with C-TOP intelligent controller |
Max Temperature: | 10bar |
Working Temperature: | -10deg;C to +120deg;C |
Surface Polishing: | Ra<0.8um |
Manual handle choose: | Pull handle, multi-position plastic handle and multi-position stainless steel handle |
Packing Method: | Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
Shipment Way: | By express,by air or by sea,as customer request |
Delivery Detail: | Usually 10-15days after order confirmed |
Application Scope: | Dairy, food, beer, beverage, pharmacy, cosmetic, water etc |
1,How about the surface finishing ?
KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be
confirmed by customer’s requirement.
2,If free sample available before place order ?
Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.
3,Is there any MOQ provide ?
Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.
4,Our business payment terms ?
We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.
5,Our standard export packing ?
For small order: plastic package each pc to carton and then into weaving bag.
Large order: plactic package into cartons,then cartons into plywood case.
6,Shipment way choose ?
Small orders will be choose by express,by airline.
Large orders will be choose by sea.
It will according to customer’s request.
