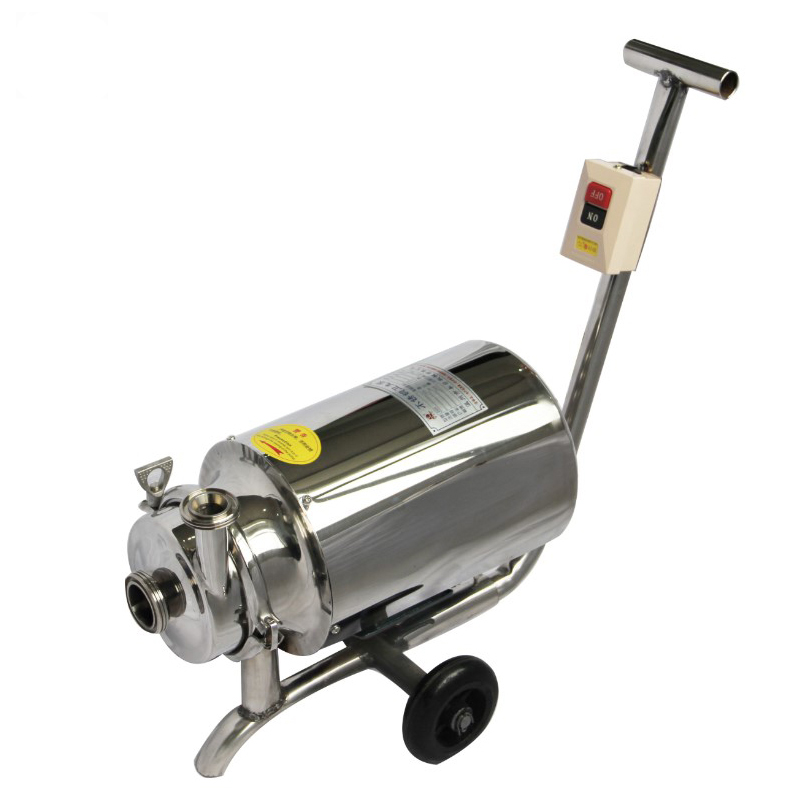

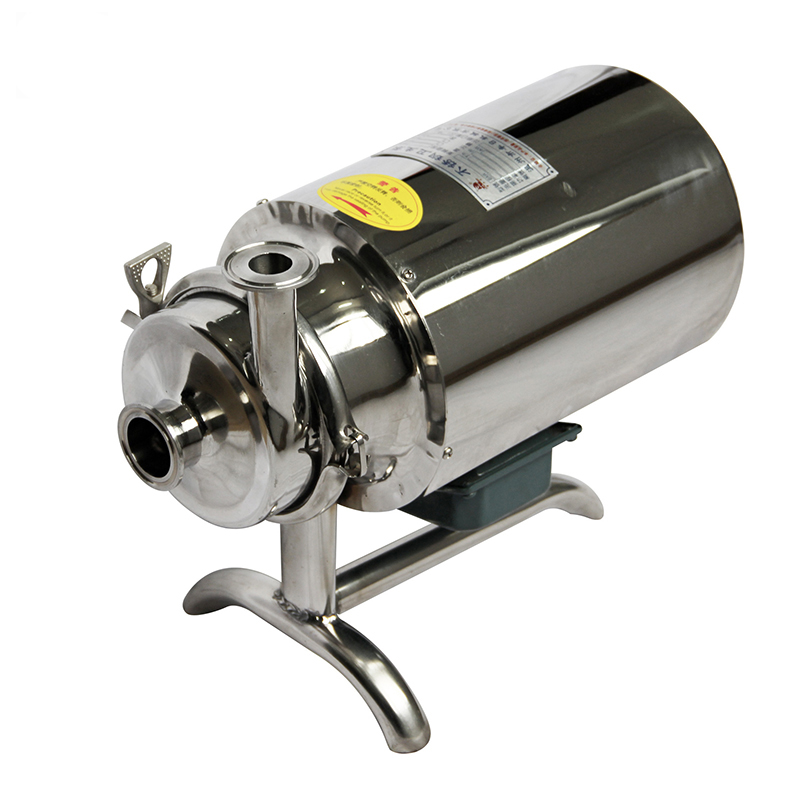

Food Grade Stainless Steel SS304 SS316L Sanitary Centrifugal Milk Pump

Availability:
Quantity:
Inquire Add to Basket

  • KG-P2006

  • KINGGO

Stainless steel sanitary centrifugal milk pump is a single-stage, single-suction, fully enclosed stainless steel sanitary pump with simple structure, convenient disassembly, low noise, high efficiency and beautiful appearance.

Sanitary milk pump adopts a smooth, rigid structure and a thick wall design. The parts of the pump, the pump cover, the impeller, etc. that are in contact with the liquid are all made of food grade stainless steel SUS304 and SUS316L .

The sanitary milk pump transport liquid is gentle and soft, meeting the food hygiene requirements and ensuring the original flavor of the product. The flow rate can be adjust with valve. The motor can be made single phase voltage.

The stainless steel sanitary milk pump is widely used in the transportation of liquid materials in food, alcohol, pharmaceutical, chemical and other fields.This small type sanitary milk pump is especially suitable for home use, with a simple structure, small size and light weight.

Sanitary milk pump is used in conveying milk,soybean milk,fruit juice drinks ,beer and similar liquid food.

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Product Description

Product Description



Valve Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM  FPM and NBR

Max. Flow:

20T/H

Max. Speed:

2900rpm

Max. Head:

24(m)

Max.Temperature:

 110 °C

Mechanical seal:

SIC/SiC/EPDM(Standard), C/SIC, TC/TC

Sealing type:

Single mechanical seal(standard)

Motor power:

0.37-4.0KW

Voltage:

210-230v,420-460v

Phase:

Single / Three

Motor Frequency:

50HZ, 60HZ

Surface treatment:

Inner polished and Sandblast outside

Availably connection:

Tri-Clamp, Thread, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Plywood case or customerized. Or as per the request of customers.

Delivery details:

Usually 10-15 days after receiving T/T down payment.
Product Display

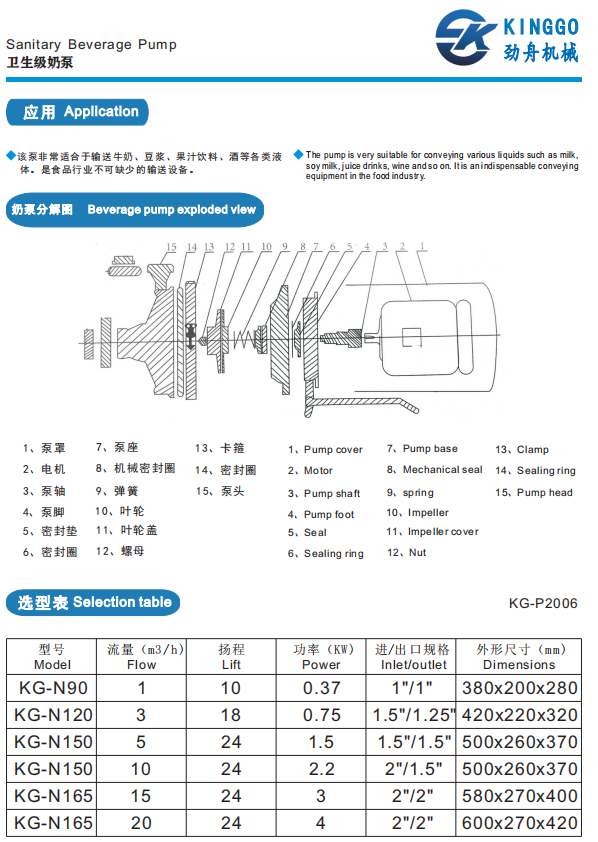

奶泵参数

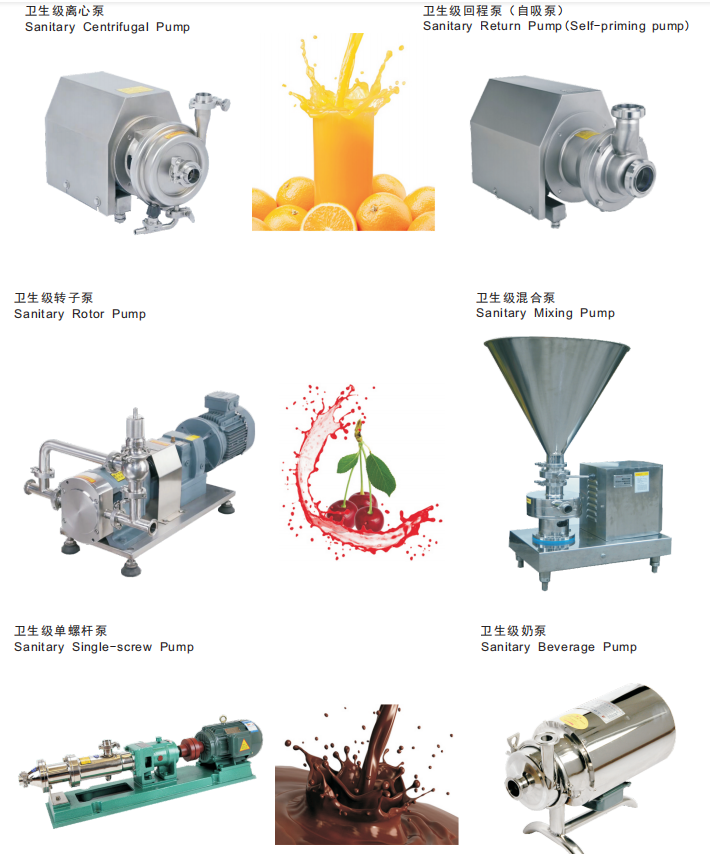

QQ图片20211010124942



More Product





About Company




Packaging & Shipping

 _750x6340_06_01_04

FAQ

FAQ



 1,How about the surface finishing ?
KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be
confirmed by customer’s requirement.

2,If free sample available before place order ?
Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.

3,Is there any MOQ provide ?
Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.

4,Our business payment terms ?
We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.

5,Our standard export packing ?
For small order: plastic package each pc to carton and then into weaving bag.
Large order: plactic package into cartons,then cartons into plywood case.

6,Shipment way choose ?
Small orders will be choose by express,by airline.
Large orders will be choose by sea.
It will according to customer’s request.
